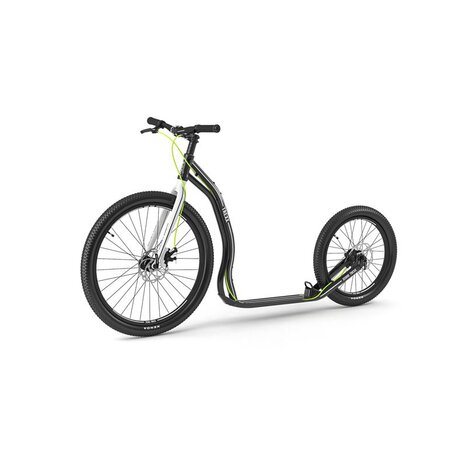

Yedoo Trexx Disc Hondenstep

Nieuwe Hondenstep van Yedoo! Trexx Disc met stijve voorvork en sterk en superlicht frame.

Max. 150 kg
Wielgrootte 26”/20”
Gewicht 9,1 kg
Leeftijd 12 +
Lengte 179 cm
Stuurhoogte 93-100 cm

Detailed technical specification

• Technical details

• Product number
  12722

• Loading limit
  150 kg / 330 lb

• Min. height of rider
  150 cm / 59 in

• Weight (with/without kickstand)
  9,1 kg // 20.1 lb

• Box size
  119 x 82,5 x 14,5 cm (46.9 x 32.5 x 5.7)

• Box weight
  12,2 kg / 26.9 lb

• Frame
  YEDOO alloy II.

• Fork
  YEDOO alloy II.

• Stem
  UNO alloy 3D oversize

• Handlebar
  UNO alloy DB (riser) oversize

• Grips
  XHH non-slip rubber

• Bar ends
  Optional

• Headset
  NECO alloy 1 1/8" semi AHEAD

• Brake levers
  TEKTRO ML 520 alloy

• Brakes (front/rear)
  2x Disc TEKTRO MD-M300 ARIES

• Wheels
  26" / 20"

• Rims
  HJC alloy double wall

• Hubs
  NOVATEC disc

• Hub width (front/rear)
  100 / 100 mm // 3.9 / 3.9 in

• Preparation for using flat screws (front/ rear)
  No / No

• Bearings
  Industrial

• Quick-release levers (front/rear)
  Yes / Yes

• Tyres (front/rear)
  KENDA Small Block Eight (60TPI, kevlar guard)

• Max. inflation (front/rear)
  4,6 bar / 4,6 bar

• Preparation for bottle holder
  2x

• Kickstand
  Optional

• Reflective elements
  On the front fork

• Dimensions

•

• [1] Length
  179 cm / 70.5 in

• [2] Footboard
  40 cm / 15.7 in

• [3] Handlebar height
  93 - 100 cm / 36.6 - 39.4 in

• [4] Width of handlebars
  64 cm / 25.2 in

• [5] Ride height (higher/lower position)*
  6 cm / 2.4 in

• [6] Distance between footboard and ground (higher/lower position)*
  8,7 cm // 3.4 in

• [7] Room for rider
  68 cm / 26.8 in

• *Tolerance +-0.2 cm

• Documents, standards and certificates

• Manual
  Manual_Yedoo_Trexx_Trexx_Disc.pdf

• Norms
  ČSN EN 14619

•

  We don’t just brag that our products have performance and quality built to last – we’ve proved it by extending the full warranty to 3 YEARS! More

• Yedoo frames are protected by registered EU industrial designs. The Yedoo brand, along with the trade names of each model, are trademark protected.

• Change of technical parameters reserved.
